Tungsten Solid Carbide Rods for End Mills and Drills with stable high quality from China

Brand:APEX
Product origin:Jiangxi,China
Sizes Range:D1.0~40.0mm,L:13~700mm
MOQ:1pcs
Sample:Available
Delivery time:3-15Days
Supply capacity:80000kgs/Month
Raw Material:100% high quality Original (Co+WC) Powder
Stock:large stock from Dia1.0~D25,and 310 or 330 in length,

Product Details

Product Tags

The introduction of carbide rods

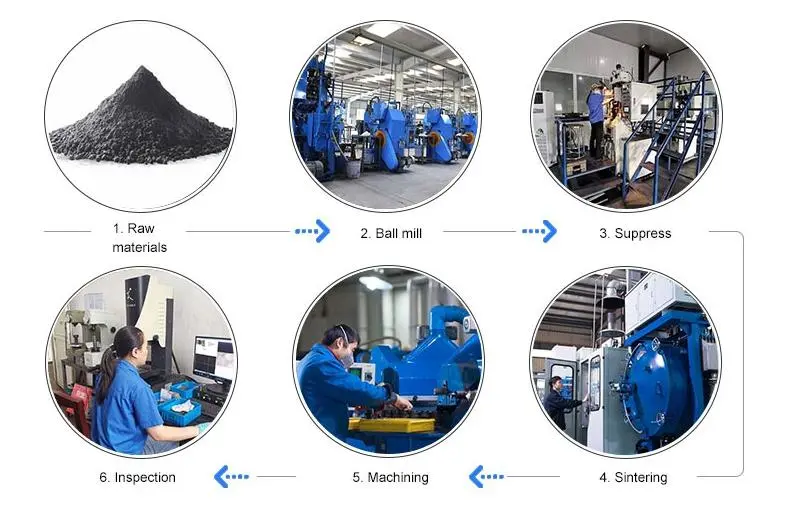

1.The tungsten solid carbide rods is press molded by molding or extrusion.

2.The tungsten solid carbide rods is sintered by a low-pressure sintering integrated furnace, thus the overall performance is high.

3.The rough tungsten-cobalt carbide round bar, or the outer diameter of the round bar can be refined and polished according to any tolerance. The common tolerances are h5,h6, -0.005, etc., and the carbide rods end chamfer can also be processed.

4.Carbide rods is suitable for the processing of general steel, cast iron, stainless steel, heat resistant steel, nickel base and titanium alloy. Recommended for general purpose carbide tool materials such as twist drills, end mills, taps, and gun drills.

Introduction of our grades

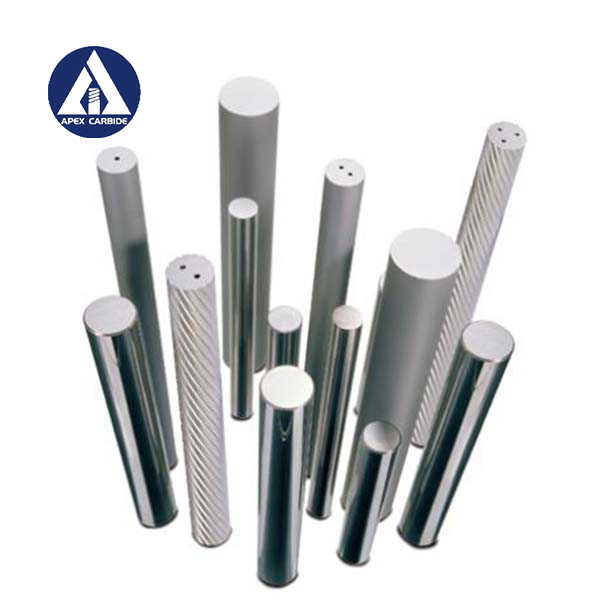

Our Types of carbide Rods

1.Unground Long rods

The TOL. of Unground Long rods
Size(DxL,mm)	Tolerance
Size(DxL,mm)	D(mm)	L(mm)
D[1-3)x310/330	0.30~0.55	0.00~+4.00
D[3-12)x310/330	0.30~0.60	0.00~+4.00
D[12-20)x310/330	0.30~0.65	0.00~+4.00
D[20-40]x310/330	0.30~0.70	0.00~+4.00

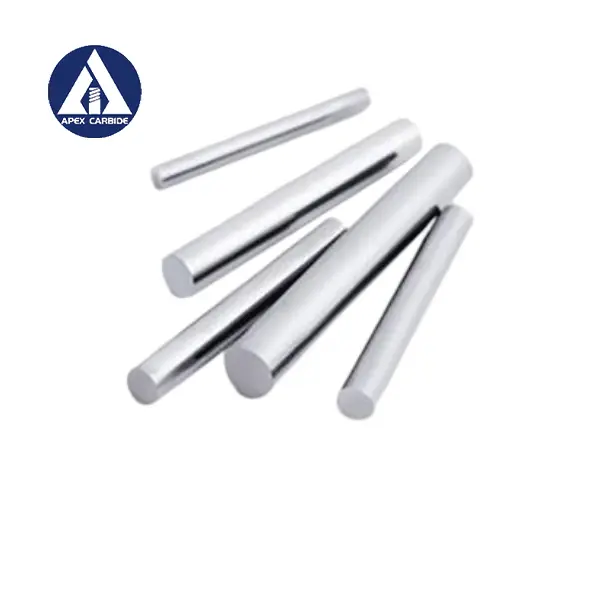

2.Unground cut-to-length rods

The TOL. of unground cut-to-length rods
D/L(mm)	The TOL.of D&L in mm
D/L(mm)	L<=70	70<L<=150
D<5	D(0.20~0.30), L(0.20~1.5)	D(0.25~0.35), L(0.20~1.5)
5<=D<40	D(0.25~0.35), L(0.20~1.5)	D(0.30~0.40), L(0.20~1.5)

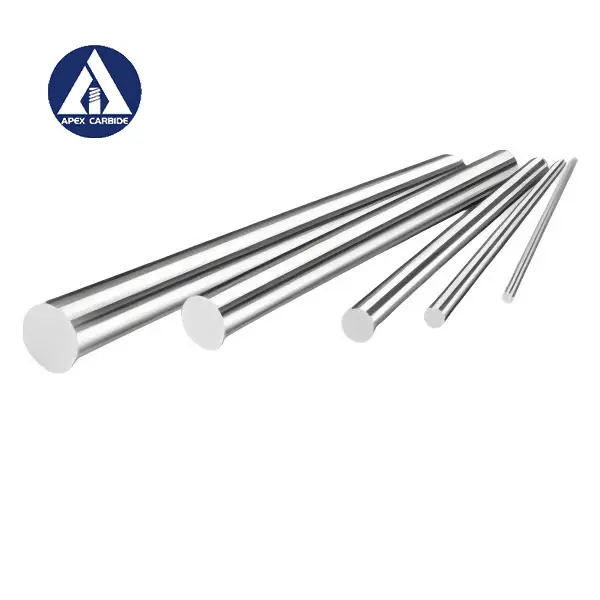

3.Ground long rods
The tolerance of the long rods is h5/h6 or at customer’s requirement in Dia. ,and 0.00~+5.00mm in Length as normal.

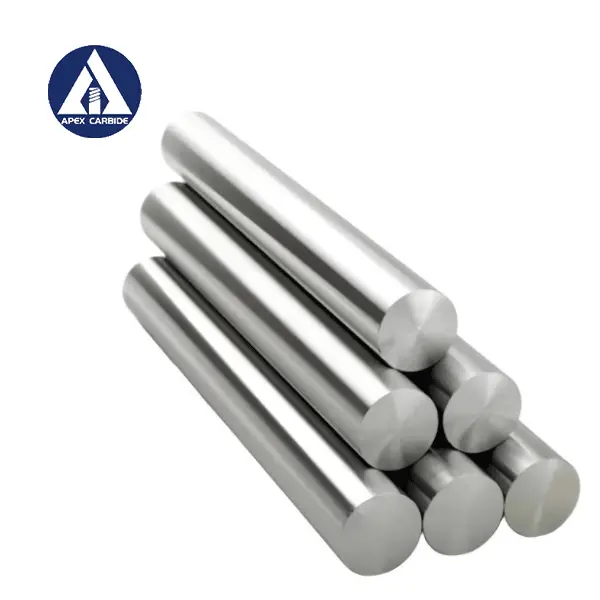

4.Ground cut-to-length rods
The tolerance of the ground cut-to-length rods is h5/h6 or at customer’s requirement in Dia. ,and 0.00~+2.00mm in Length as normal. 5.PCB Rods competitive Advantage
